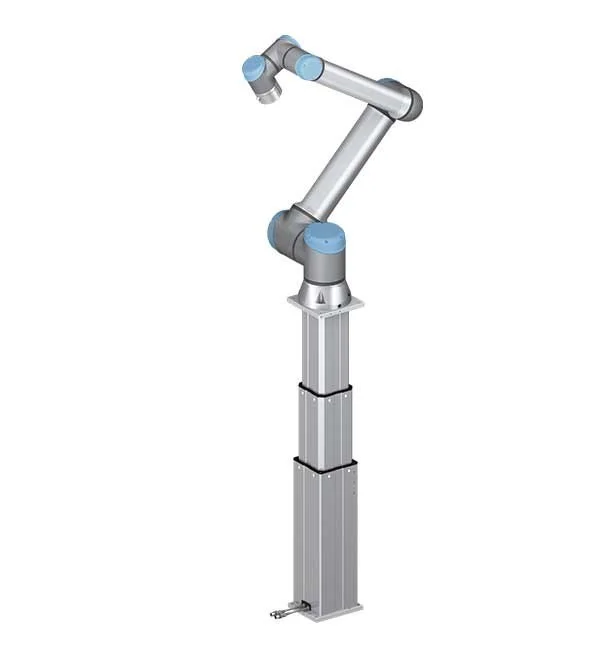

The LIFTKIT is a vertical positioning system for operating range extension of a Universal Robot. It is a ready to install system including a telescopic pillar, controller and software plugin for Universal Robots (UR Caps).

FEATURES

• UR+ certified vertical positioning axis for operating range extension of a Universal Robot

• Robust pillar design for industrial use, vibration free motion and virtually maintenance free

• No hardware/software development required, ready to use complete system solution

• UR Caps included for direct positioning access within the UR Polyscope environment

• Attachment threads for third party external cable management

HOW DOES IT WORK?

• Ready to run in 30 minutes. Attach the robot to the pillar, plug in the cables and install the UR Caps plugin.

• Axis positioning is directly accessible in the UR Polyscope environment

• The maximum stroke range available ranges between 500 mm to 900 mm with a compact retracted height.

SLIDEKIT offers a plug-and-play system to add a horizontal axis, extending the operating range of a cobot, with fast and precise positioning, up to 3 meters stroke. SLIDEKIT is fully compatible with the entire Universal Robot cobot range and can be controlled via integrated software interface directly on UR teach pendant.

The 2.0 release of the SLIDEKIT delivers several improvements compared to the former version, like higher system reactivity and stability, lower noise in operation, integrated safety relays and optimized design for limit switches and re-lubrication points. With more than 200 units working on the field, SLIDEKIT is an established solution to effectively extend the cobot horizontal reach, with the best price/performance ratio. And with the 2.0 release, it just gets better.

HOW DOES IT WORK?

The installation process is simple and with few steps the system is ready to go:
1. Unbox the SLIDEKIT and fix it on the installation area
2. Mount the cobot on the carriage using the attachment holes (for any UR cobot size)
3. Connect the cables easily by matching the numbers on cables and box
4. Connect the SUB and install the URCaps plugin
5. Enable the communication in the installation tab
6. perform the one-time homing on the SLIDEKIT
7. Ready to play!
